4G WCDMA Solar power weather station SMS remote data logger

Feature:

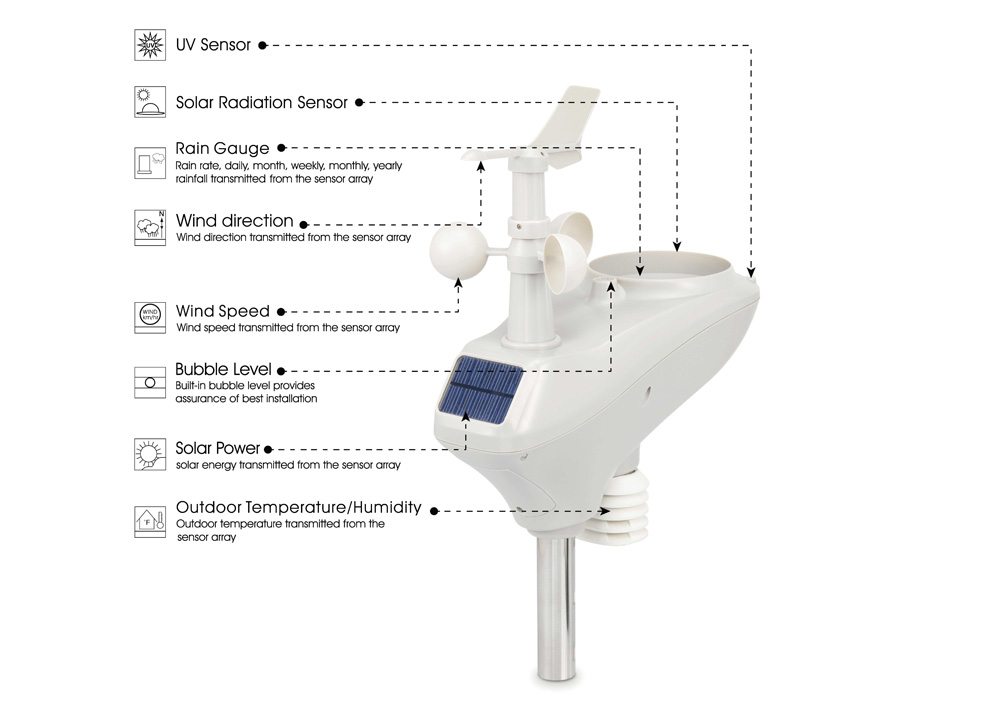

1) Receiver the following weather data from outdoor integrated sensor:

a.Wind speed and direction

b.Air temperature

c. Relative humidity

d.Rain

e. Solar Radiation and UV radiation

2) Connect the sensor with a RS485 port

3) Upload the weather data to dominated website by GPRS,

the default website is www.wunderground.com

4) Send alarm message to mobile by SMS

5) Connect to PC via USB

6) The data saved as CSV file on the SD card

7) Data will not lost if power off

8) Transmission span time is programmable by user from 0 or 10 minute to 24 hour(0 is not send the data via GPRS)

9) Simply installation and easy to use

Specifications:

1) Temperature range:-30˚C--65˚C (-22℉ to +149℉)

Accuracy:+ / - 1 °C

Resolution:0.1˚C

2) Measuring range rel. humidity:1%～99%

Accuracy :+/- 5%

3) Rain volume display:0 – 9999mm (show --- if outside range)

 Accuracy:+ / - 10%

 Resolution: 0.3mm (if rain volume < 1000mm)

  1mm (if rain volume > 1000mm)

4) Wind speed:0-50m/s (0~100mph) (show --- if outside range)

Accuracy: +/- 1m/s (wind speed< 5m/s)

      +/-10% (wind speed > 5m/s)

5) Light:0-400k Lux

 Accuracy: +/-15%

6) Measuring interval: 16 sec

7) Measuring range air pressure: 300-1100hPa (8.85-32.5inHg)

 Accuracy:+/-3hpa under 700-1100hPa

 Resolution:0.1hPa (0.01inHg)

Alarm duration:120 sec

Power consumption:

Control unit: 1x18650 3.7V rechargeable battery

Back up solar panel: Voc:5.4V,Isc:200Ma
