HP3500

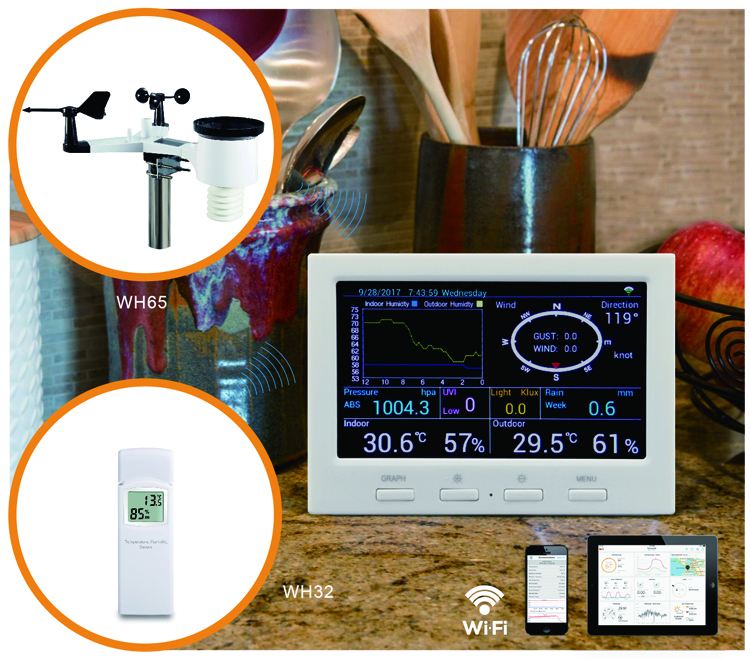

TFT Color Screen WiFi Weather Station with Real-time Internet Publishing

Feature:1.FreeIOS/AndroidweatherApp,viewthecurrentconditiononourownApp:WSVIEW2.4.3'TFTLCDfullcolordi

Download Now Add To Cart

Features

Feature:

1.    Free IOS/Android weather App, view the current condition on our own App: WS VIEW

2.    4.3' TFT LCD full color display with adjust backlight.

3.    Programmable Weather Alarms, sets high/low alarms for temperature, humidity, barometric pressure, wind, gust, dew point and feels like temperature

4.    Free PC software for remote monitor

5.    Solar powered outdoor sensor

6.    Graph display of 12h/24h/48/72h of weather data: temperature/humidity/pressure.

7.    In/outdoor temperature and humidity

8.    rainfall data(inches/mm): rain rate, daily , monthly, yearly.

9.    Wind speed in mph, km/h, m/s, knots or Beaufort; Wind direction with 360 degree

10. Wind chill, dew point and fells like temperature display(°C/°F).

11. MAX, MIN values with a time stamp.

12. Light and UV index(0-15)

13. Barometric pressure(inHg or hPa)

14. Time and date, Time zone setting and alarm clock

15. Weather high/low alarm modes: temperature, humidity, wind chill, dew point, wind speed, air pressure, fells like temperature.

Specifications
Transmission distance in open field :     100m(330 feet)
Frequency                       :     868 MHz / 915 MHz (option)
Temperature range              :    -40
°C--60°C

Measuring range rel. humidity  :     10%¡«99%

Rain volume display            :     0 – 9999mm (show --- if outside range)

Accuracy                         :     + / - 10%

Resolution                       :     0.3mm (if rain volume < 1000mm)
                                               1mm (if rain volume > 1000mm)
Wind speed                      :     0-50m/s (0~100mph) (show --- if outside range)
Light                              :     0-200k Lux



Power consumption
Base station : 5V DC adaptor (included)
Indoor sensor : 2X AA 1.5V LR6 Alkaline batteries (not included)
Outdoor sensor : 2X AA batteries (not included)





PC Software Download



Firmware v1.6.9 Download



Manual Download
