WiFi Weather Station Large TFT Color Screen with 7-in-1 Sensor Array


Add To Cart

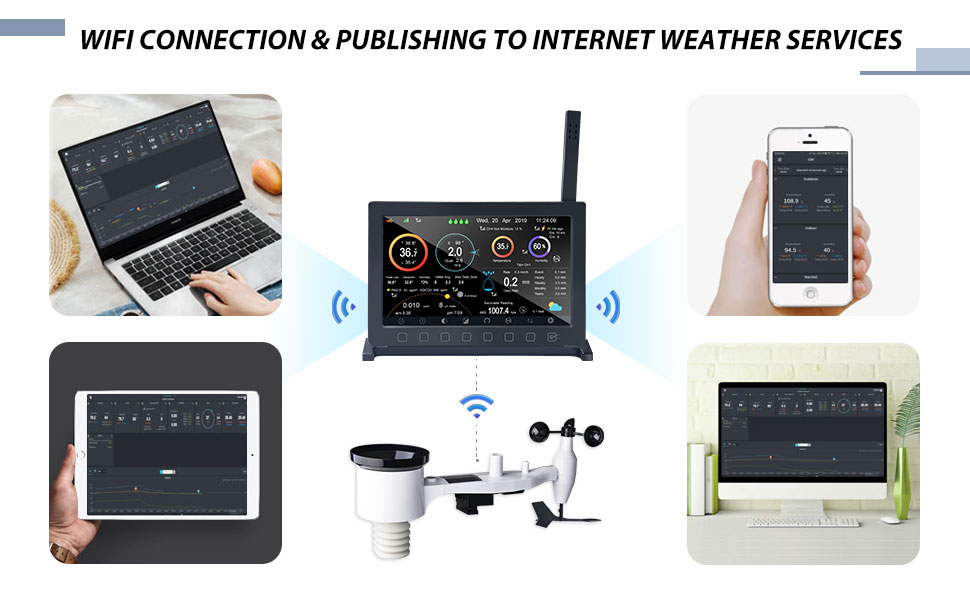

· WiFi connection

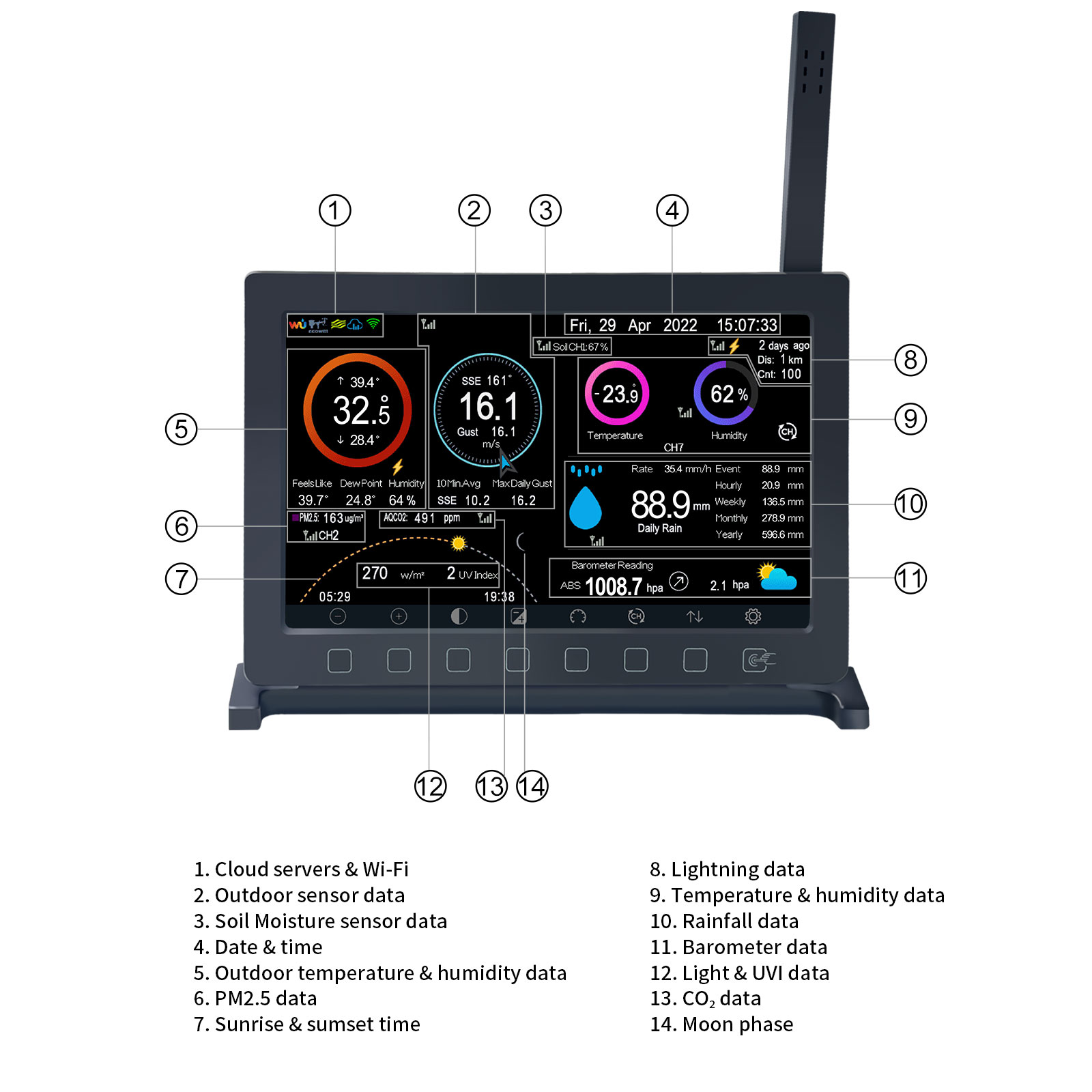

· Full color menu based TFT LCD full color display

· Indoor temperature, humidity, air pressure measured by display console in-built sensor.

· Wireless Outdoor Solar Powered 7-in-1 Weather Sensor measures wind speed, wind direction, temperature, humidity, rainfall, UV and solar radiation

· Dual-power supply for all-in-one sensor: Solar power autonomy & Backup battery · Support all Fine Offset FSK Modulation type sensors.

· Get Live data instantly

· Support servers: Weathercloud, Ecowitt.ent, Wunderground, WOW or third part server. Easy integration to 3rd party system

· Get email alerts from Ecowitt.net if your defined alert condition is triggered

· Long transmission range up to 200meter

Set includes:

1) Display Console
2) Outdoor Integrated sensor(Thermo-hygrometer / Rain Gauge / Wind Speed / Wind direction /Transmitter)
3) Indoor sensor
4) 5V DC adaptor


Transmission distance in open field :     100m(330 feet)
Frequency                       :     433 MHz / 868 MHz / 915 MHz (option)
Temperature range               :    -30 C--60C (-22¨H to +149¨H)

humidity rang    :     1%¡«99%
Rain volume display              :     0 – 9999mm (show --- if outside range)
Accuracy                                :     + / - 10%
Resolution                             :     0.3mm (if rain volume < 1000mm)
                                                    1mm (if rain volume > 1000mm)
Wind speed                          :     0-50m/s (0~100mph) (show --- if outside range)
Light                                      :     0-200k Lux

Power consumption

Base station                      :   5V DC adaptor (included)
Indoor sensor                     :   2xAA alkaline batteries (not included)
Outdoor sensor                   :  Solar panel (built-in)
Outdoor sensor (backup)          :  2 x AA Batteries (not included)

Supports MAX 8 WN51 soil moisture sensor  + MAX 8 WH31 multi channel temperaure and humidity sensor+ MAX 4 WH41 outdoor PM2.5 sensor or WH43 indoor PM2.5 sensor + 1 WH45 PM2.5/CO2 sensor + MAX 8 WN34BL Wire probe thermometer or WN34BS Stanless-steel probe thermometer + 1 WN35 Leaf Wetness sensor + 1 WH57 Lightning sensor + Max 4 Water leak sensor  (Sold separately)
