WiFi connection,Color LCD display, Indoor temperature&humidity&air pressure, outdoor humidity,temperature,wind speed, wind direction,rainfall. Free app
· WiFi connection

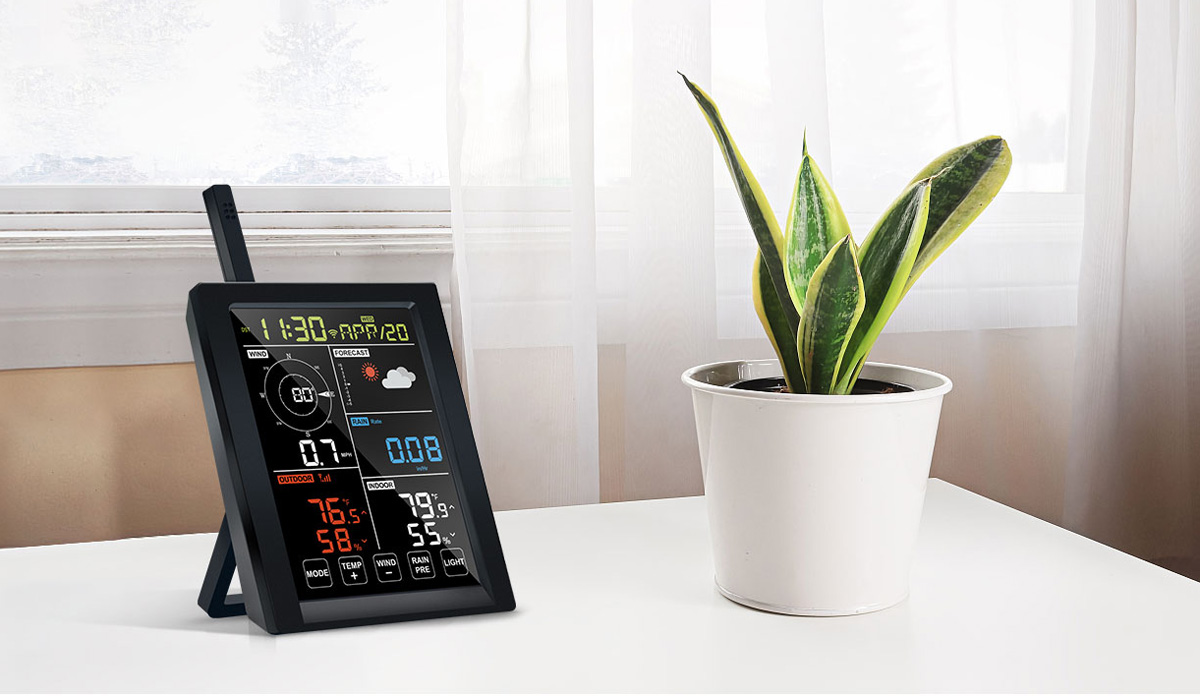

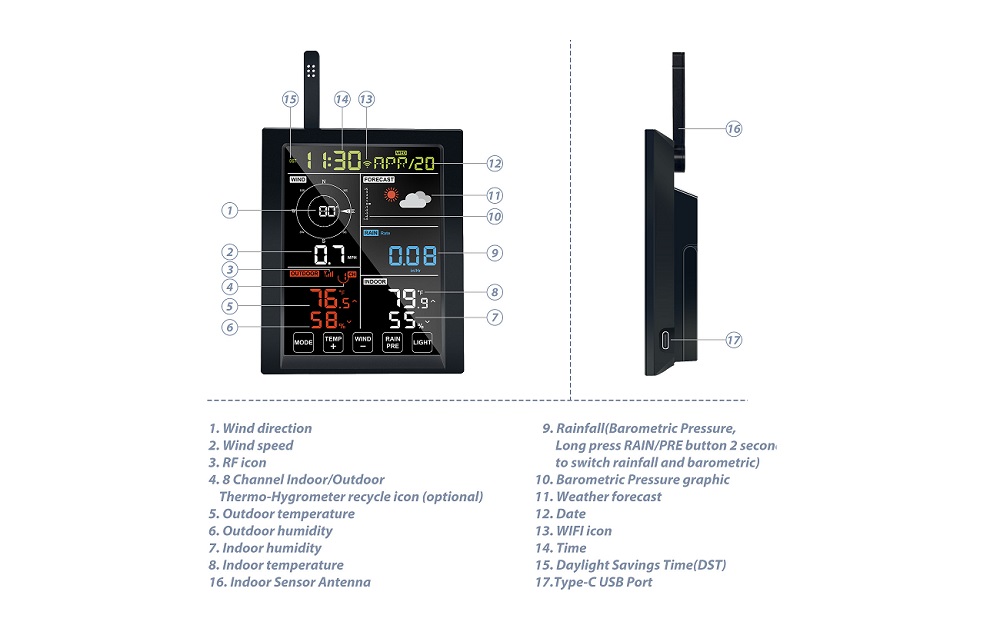

· Color LCD display
· Indoor temperature, humidity, air pressure measured by display console in-built sensor.

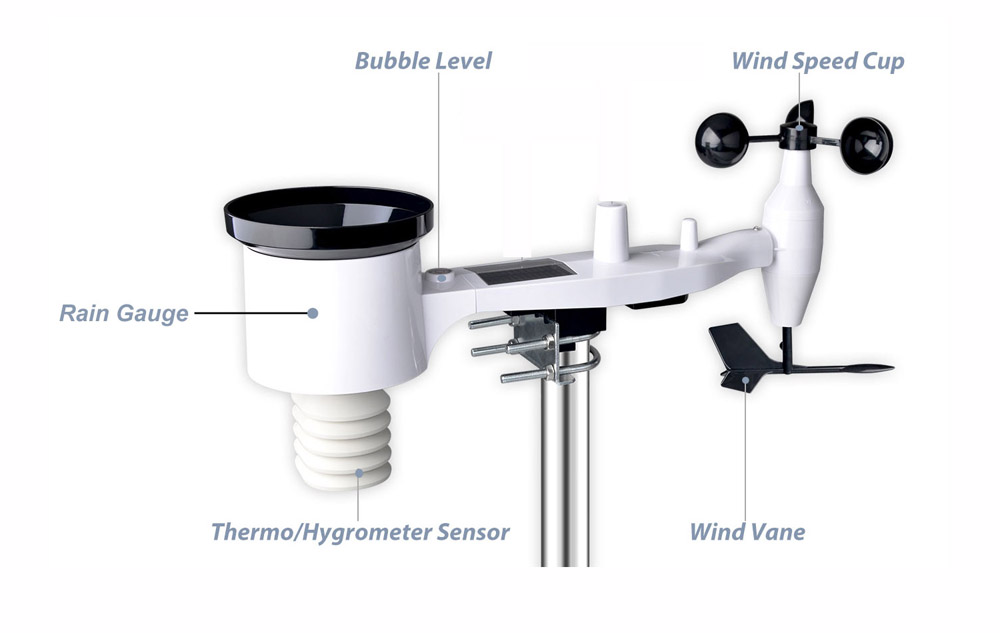

· Wireless Outdoor Solar Powered 5-in-1 Weather Sensor measures wind speed, wind direction, temperature, humidity and rainfall,
· Weather forecast, moon phase, sunrise/sunset
· Support all Fine Offset series of sensors.
· Get Live data instantly
· Support servers: Ecowitt.ent, Weathercloud, Wunderground, WOW or third part server. Easy integration to 3rd party system
· Get email alerts from Ecowitt.net if your defined alert condition is triggered
· Long transmission range up to 600feet
· Free WSView plus app
Specifications (Display console)
|
Measurement |
Range |
Accuracy |
Resolution |
|
Barometric |
300 to 1100 hPa (8.85 to 32.5 inHg) |
± 5hPa |
0.1hPa (0.01 inHg) |
|
Temperature (Indoor) |
-10°C to 60°C (-14°F to 140°F) |
± 0.3°C (± 0.6°F) |
0.1°C (0.1°F) |
|
Humidity (Indoor) |
1% to 99% |
± 3.5% |
1% |
Display console: 104.5*127*15mm
Display console power supply: Type-C power cable
Display console backup power: 2XAA batteries (not included)
Specifications (Sensor)
|
Measurement |
Range |
Accuracy |
Resolution |
|
Wind speed |
0m/s to 40m/s |
<5m/s, ±1m/s; ≥5m/s, ±10% |
0.1m/s |
|
Wind direction |
0° to 359° |
±10° |
1° |
|
Temperature |
-40°C to 60°C |
±1°C |
0.1°C |
|
Humidity |
1% to 99% |
±5% |
0.01 |
|
Light |
0Klux to 200Klux |
±15% |
0.1Klux |
|
UVI |
1 to 15 |
±2 |
1 |
|
Rain |
0 to 9999 |
±10 |
0.1mm |
Sensor power supply : 2 x AA 1.5V battery (not included)
Transmission between display and sensor
Transmission distance in open field: 150 m (500 ft.) depend on environment
RF frequency: 433/868/915 MHz depending on location
Sensor reporting interval: 16 seconds
