4G WCDMA network automatic meteorological station with Remote Monitoring App

3G 4G WCDMA network automatic meteorological station with Remote Monitoring App

Add To Cart

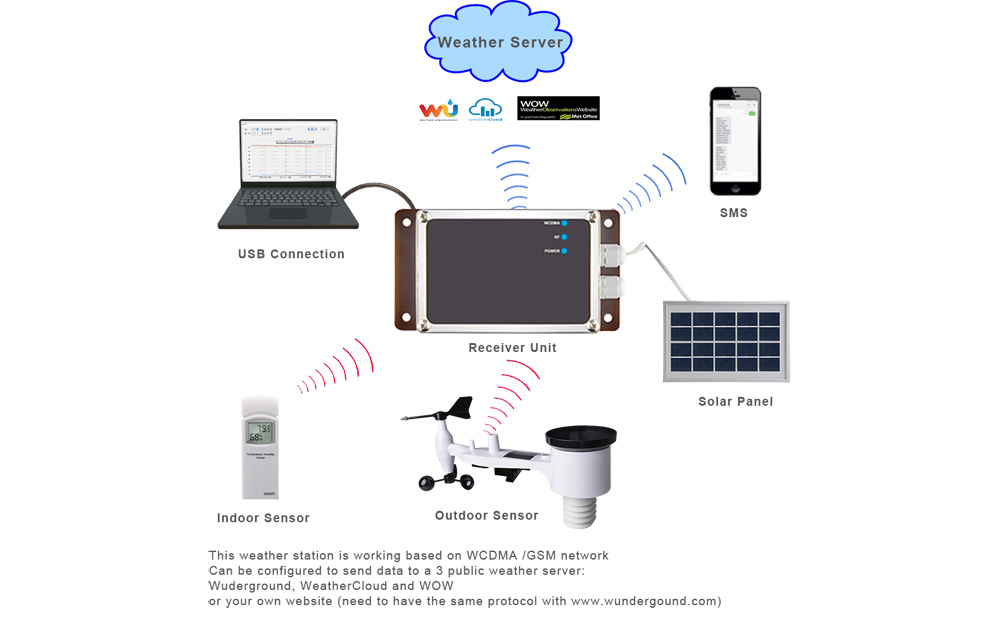

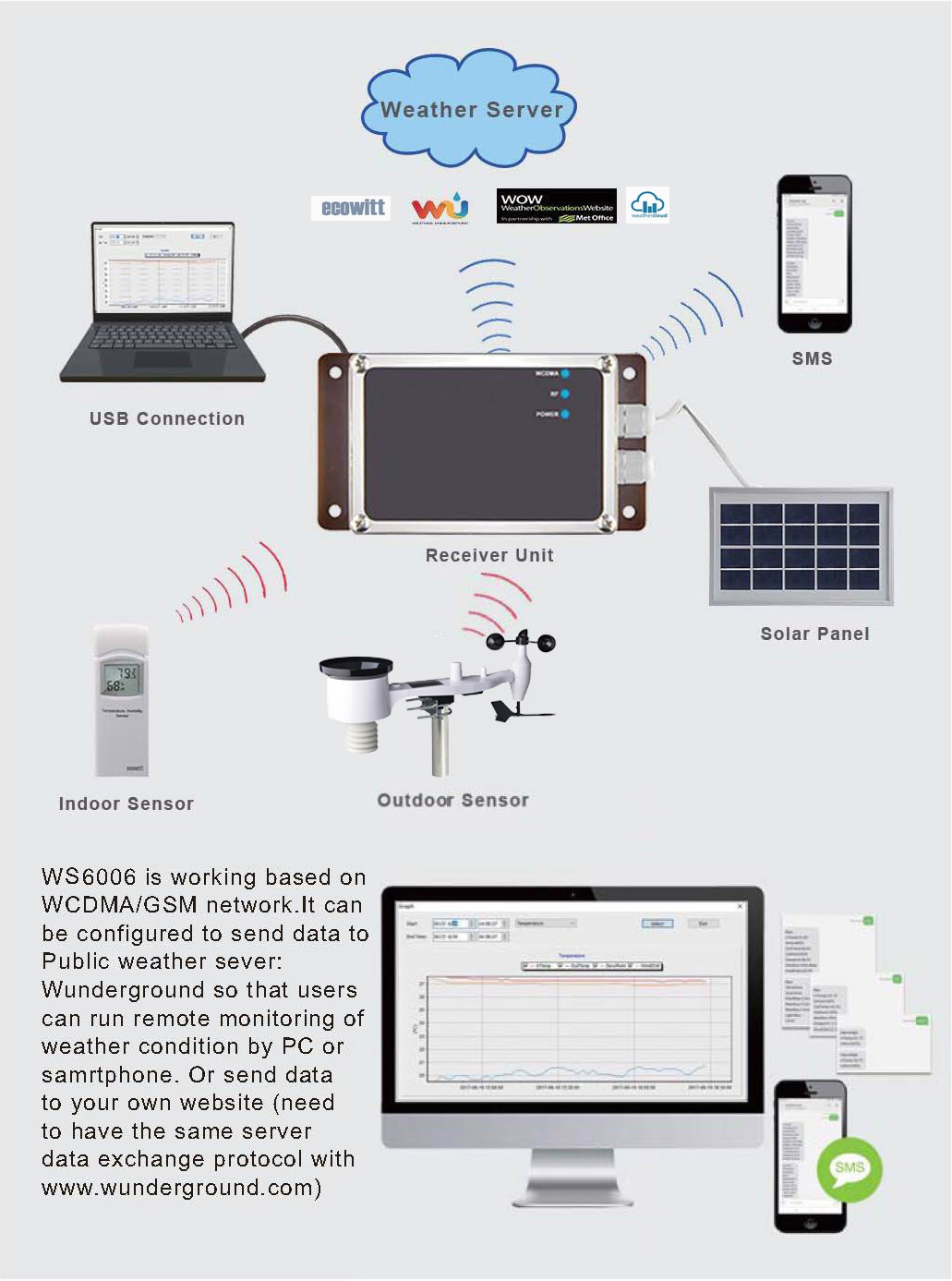

 1.Weather data achieved from precise measuring sensors will be transmitted to the receiver/console by wireless RF signal.While the 3G/4G module built in the receive unit will collect and upload these weather data to internet.
2.There are 3 public weather platforms for users' option:wunderground,weatherbug,weathercloud.
3.Free Iphone, Ipad and Android APPs available from

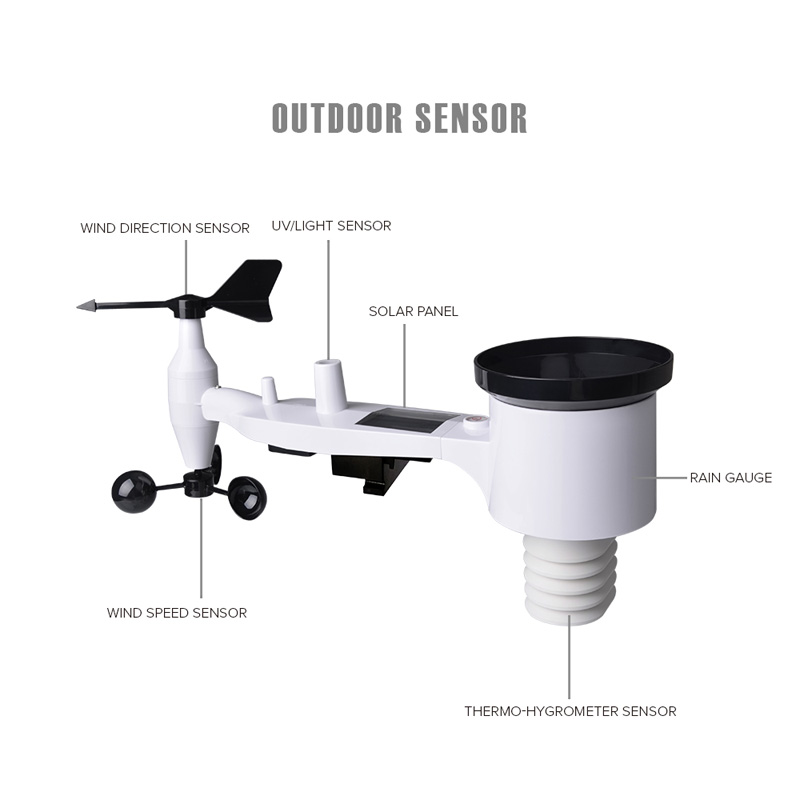

  • Receive the following weather data from outdoor integrated sensor
    1.  Wind speed and Direction
    2.  Air Temperature
    3.  Relative Humidity
    4.  Rain
    5.  Solar radiation and UV radiation
  • Receive indoor temperature and humidity from indoor sensor
  • RF Wireless communication between sensor and receiver
  • Upload the weather data to dominated website by WCDMA network:, Weathercloud, WOW and your own website (need to have the same protocol with
  • Send alarm message to mobile by SMS
  • PC software (USB Connection)
  • The data saved as CSV file on the SD card
  • Data will not lost if power off
  • Real-time data and graph can be displayed in our APP “WS View”
  • Transmission span time is programmable by user from 0 or 10minute to 24hour  (0 is not send the data via WCDMA network)
  • Simply installation and easy to use
  • Supports WH41 PM2.5 Sensor and WH51 Soil Moisture Sensor(Should be at the same RF Frequency and sold separately)



  • Solar Radiation: 120k Lux
  • Accuracy:+/-15%
  • Wind speed:0-50m/s(0-100mph)
  • Accuracy:  +/-1m/s(wind speed<5m/s)
                      +/-10%(wind speed>5m/s)
  • Temperature range: -40°C to 60°C
  • Accuracy:+/-1°C
  • Rel.humidity range:1%-99%
  • Accuracy:+/-5%
  • Rain volume:0-9999mm
  • Accuracy:+/-6%
  • Resolution: 0.3mm(if rain volume<1000mm)
                          1mm(if rain volume>1000mm)

       Power consumption

  • Control unit: 1×18650 3.7V Rechargeable battery
  • Outdoor sensor:2×AA 1.5V battery

Professional 4G Cellular Wireless Weather Station
