1.Configure WiFi via BLE
2.New low energy Wi-Fi system
3.All-in-one outdoor sensor array
4.Live Data on APP
Features:
Configure WiFi via BLE
New low energy Wi-Fi system can operate with normal AA batteries for 4month
Live Data on APP: Makes all sensor data available to WS View app on your local network
WiFi capable: enable your station to publish its data wirelessly to Ecowitt/Weather Underground/Weather Cloud/WOW and view the current weather condition directly via WS View app.
Global time synchronization while base station connected with the internet
Supports up to 8 outdoor temperature & humidity sensor (optional)
· Calendar
· Indoor/Outdoor temperature and humidity
· Wind speed, gust speed, and wind direction
· Absolute and Relative barometric pressure
· Rainfall rate and totals for one hour, one day, one week, one year
· Wind chill, dew point and heat index display
· Selectable display units for each sensor: C or F (temperature); mph, kph (wind speed); inHg, hPa or mmHg (pressure); in or mm (rainfall).
· Weather forecast based on barometer reading
· High/low alarm for indoor& outdoor temperature and humidity
Set includes:
1) Display Console
2) Outdoor Integrated sensor(Thermo-hygrometer / Rain Gauge / Wind Speed / Wind direction /Transmitter)
3) USB to 2.5*0.7mm DC 5V power plug connector cable
4) 5V DC adaptor
Specifications
Outdoor data
|
Transmission distance in open field |
: 100M |
|
Frequency |
: 433MHz/868MHz/915 MHz depending on location |
|
Temperature range |
: -40˚C--60˚C (-40˚F to +140˚F) |
|
Accuracy |
: + / - 1 °C |
|
Resolution |
: 0.1˚C |
|
Measuring range rel. humidity |
: 10%¡«99% |
|
Accuracy |
: +/- 5% |
|
Rain volume display |
: 0 – 9999mm (show --- if outside range) |
|
Accuracy |
: + / - 10% |
|
Resolution |
: 0.1mm (if rain volume < 1000mm) 1mm (if rain volume > 1000mm) |
|
Wind speed |
: 0-50m/s (0~100mph) (show --- if outside range) |
|
Accuracy |
: +/- 1m/s (wind speed< 5m/s) +/-10% (wind speed > 5m/s) |
|
Measuring interval thermo-hygro sensor |
: 16 s |
Indoor data
|
Indoor temperature range |
: 0˚C--50˚C (32˚F to + 122˚F) (show --- if outside range) |
|
Resolution |
: 0.1˚C |
|
Measuring range rel. Humidity |
: 10%¡«99% |
|
Resolution |
: 1% |
|
Measuring range air pressure |
: 700-1100hPa (20.67-32.5inHg) |
|
Accuracy |
: +/-3hpa |
|
Resolution |
: 0.1hPa (0.01inHg) |
|
Alarm duration |
: 120 sec |
|
Measuring interval indoor data |
: 60s |
Power consumption
· Base station : 5V DC (USB to 2.5*0.7mm DC 5V power plug connector cable included)
· Base station : 2 x AA batteries (not included)
· Remote sensor: 2x AA batteries (not included)

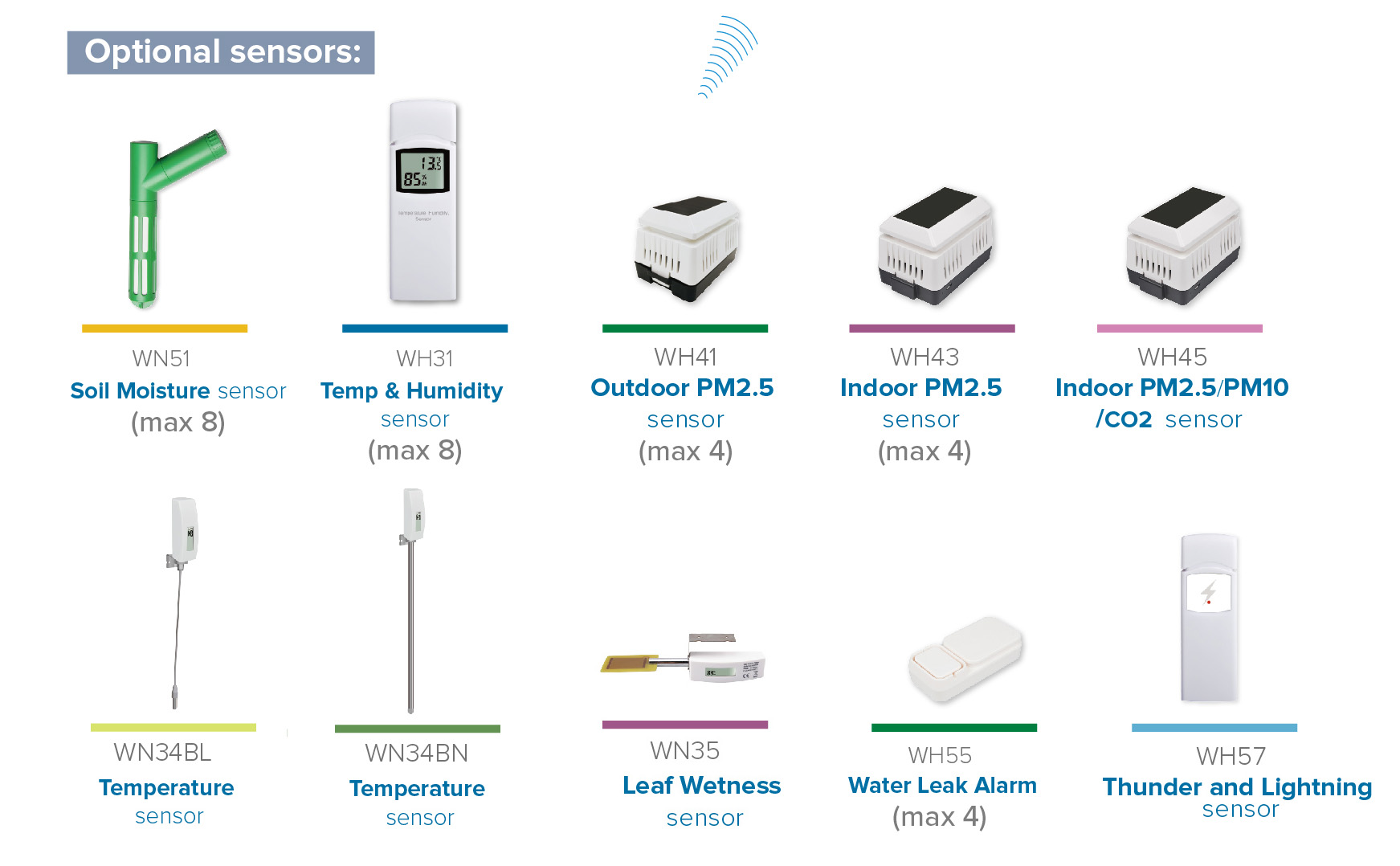

Supports MAX 8 WH51 soil moisture sensor + MAX 4 WH41 PM2.5 air quality sensor + MAX 8 WH31 multi channel temperaure and humidity sensor + 1 WH57 Lightning sensor + Max 4 Water leak sensor with console firmware V1.6.0 or above (Sold separately). 8 WH31 multi channel temperaure and humidity sensor recycle display on the console. Other extra sensors data is not displayed on the console (pass through only) and sensor management and calibration can only be realized via WS VIEW app.
